AIN5A analog inputs module

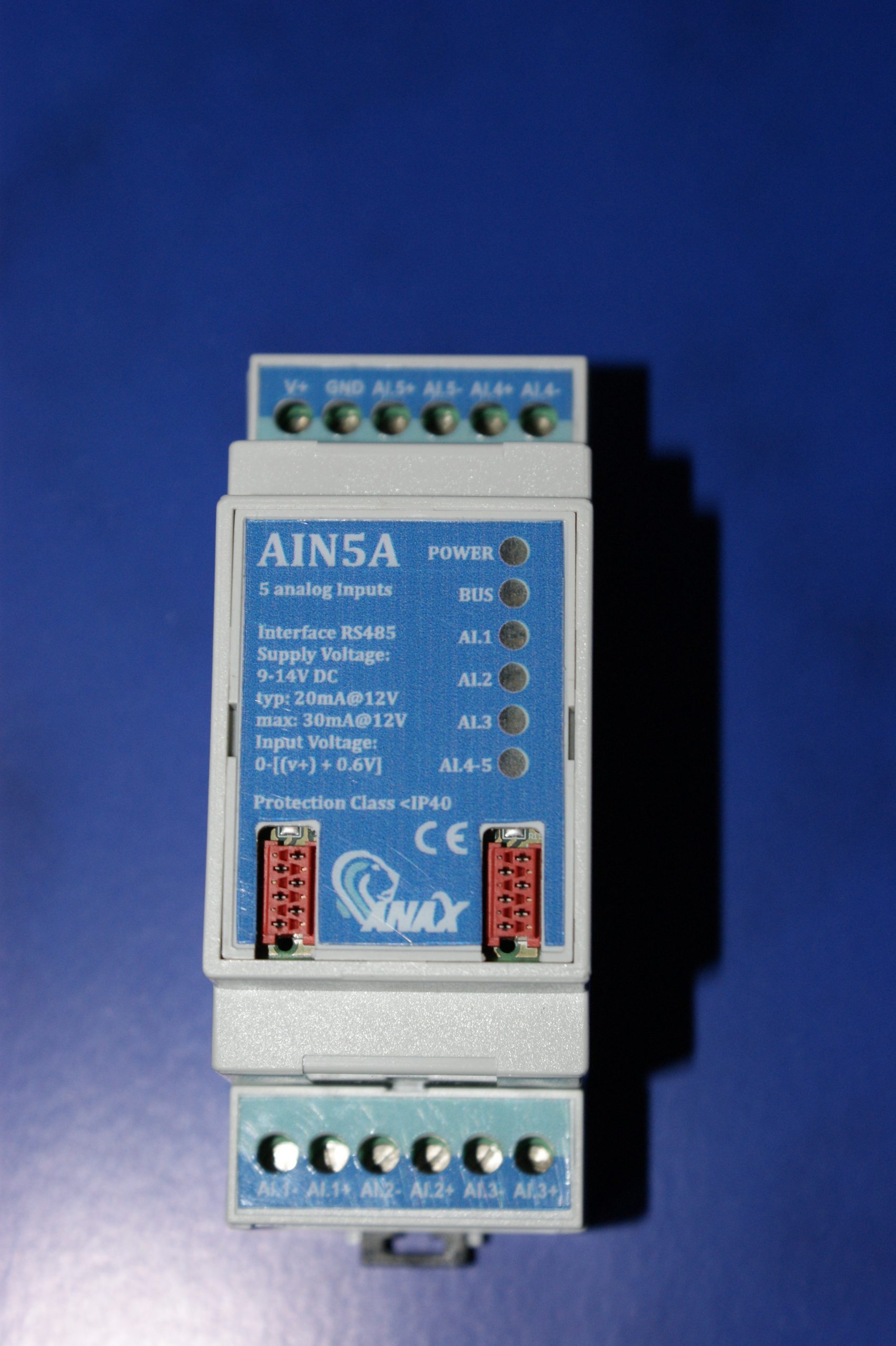

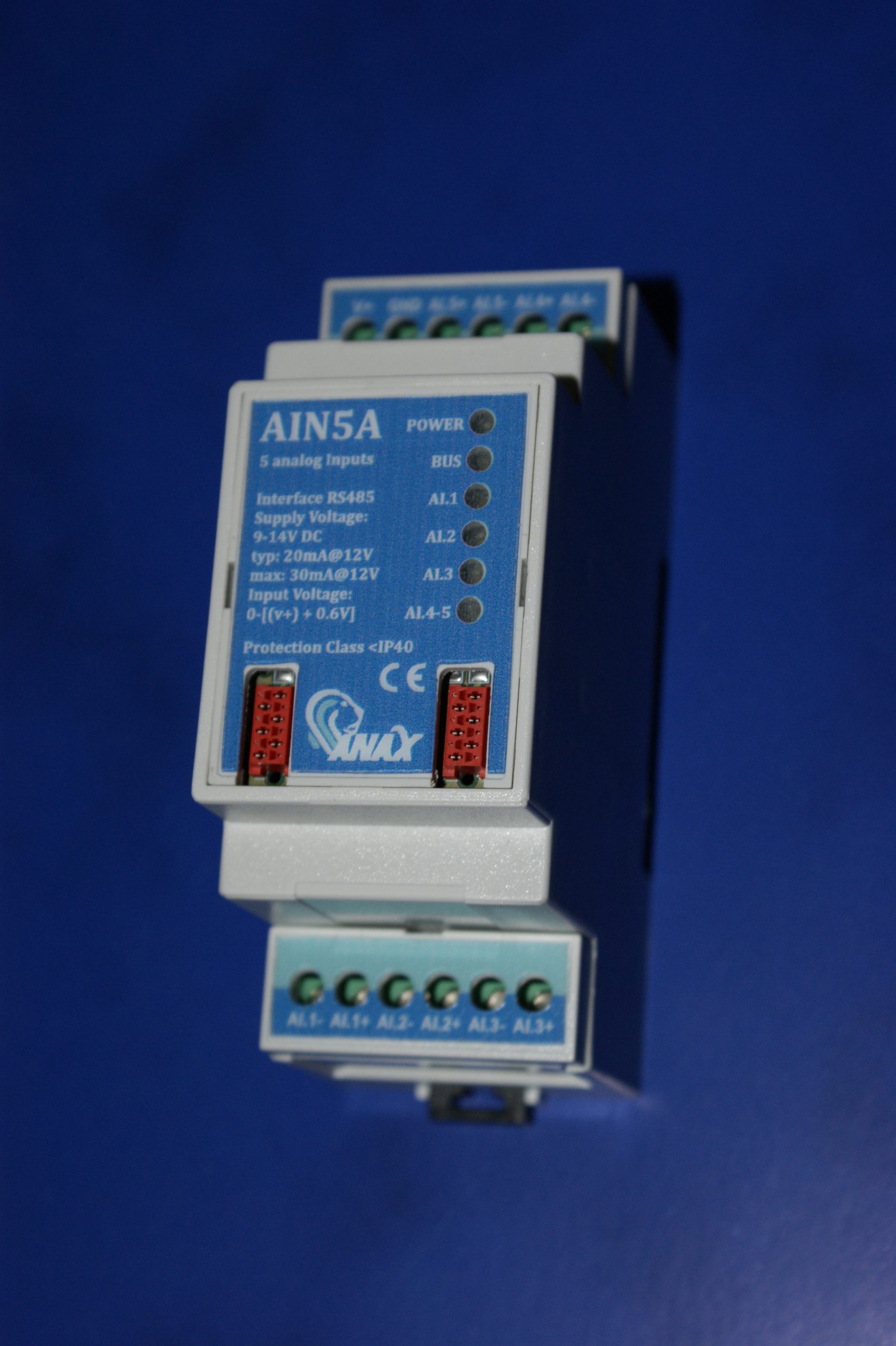

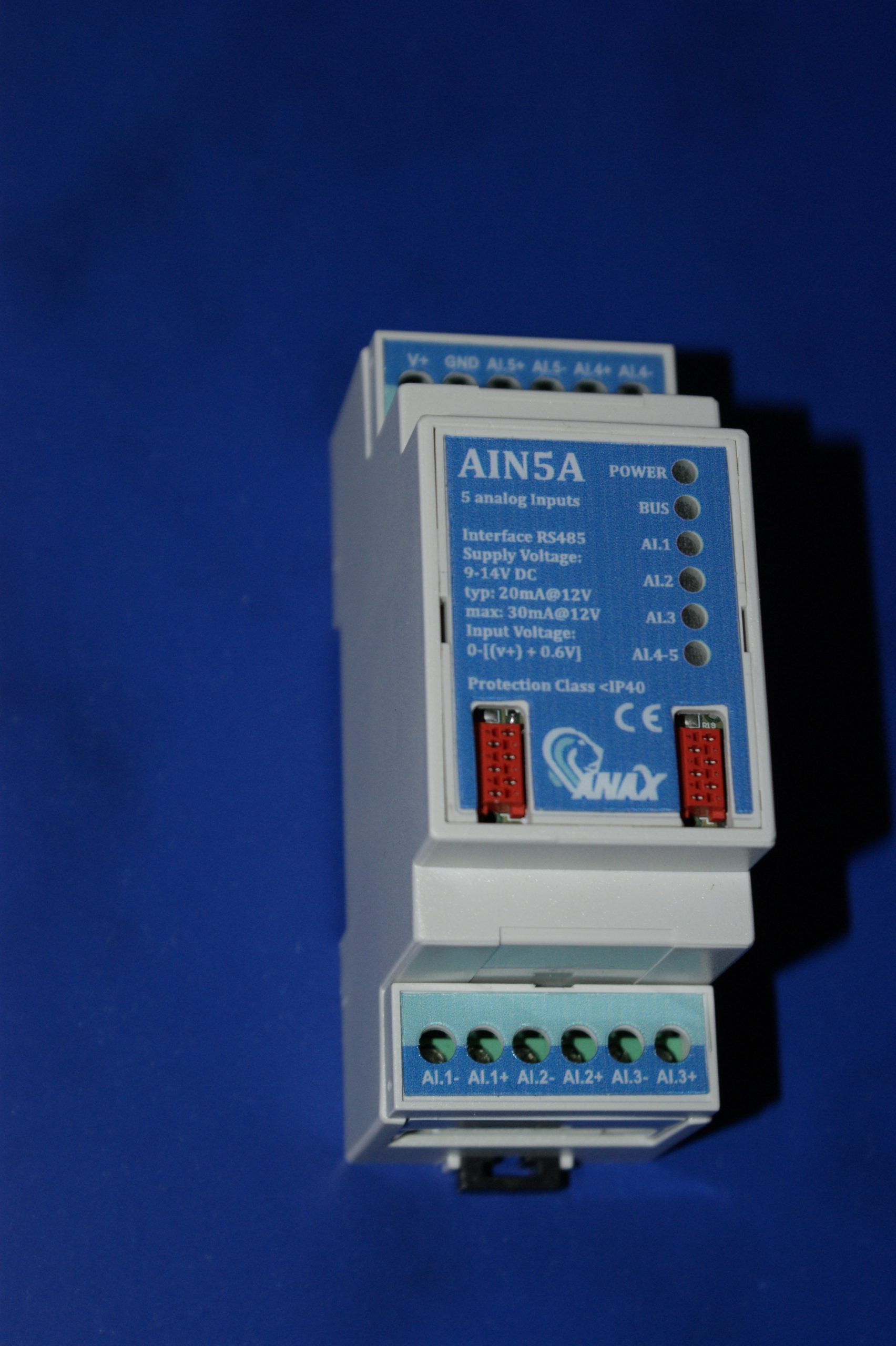

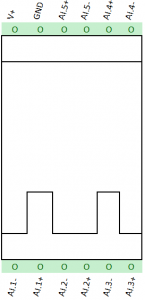

Analog Input module, auto addressed with 5 onboard integrated Analog Inputs.

Technical Details

  • 5 onboard integrated Analog Inputs
  • RS485 Interface
  • Supply Voltage: 9-14 V
    • Typ: 20mA @ 12V
    • max: 30mA @ 12V

Input Specifications:

  • Voltage : 0 – [(V+) + 0.6V]

Additional Specifications :

  • CPU: STM32F100 Arm Cortex-M3 core
  • 2 orange LEDs (Power, Comm.)
  • 3 green LEDs (Diagnostics AI.1 – AI.3)
  • 1 green LED (Diagnostics AI.4 – AI.5)

Housing :

  • Dimensions (WxHxD): 36 x 90 x 58 mm
  • Material: Plastic
  • Mounting: on standard mounting DIN rail EN 60715 TH35
  • Protection Class: <IP40
  • Connection : removable spring terminals
  • Mounting position : Optional

Description :

AIN5A is a 5 Inputs module, designed to support the majority of the commonly used sensors of the market. Either for active or passive sensors, it can measure resistance up to 800 kΩ, offering solutions for high demanding installations. The connection of each sensor to the modules input is taken place per pair, also the (-) and the (+), where the (-) is common to the GND. All sensors independent of the type, must be connected in pair, in order to have a common GND.

Currently sensors  supported :

Active : 0-5V, 0-10V, 2-10V, 1.5-5.5V

Passive : PT100, PT500, PT1000, Ni100, Ni1000, NTC1.8k, NTC10k, NTC20k, KTY81-210, PTC10k, LM2352

Price

100 exc. Vat

Quantity

Category:

Description

Analog Input module, auto addressed with 5 onboard integrated Analog Inputs.

Technical Details

  • 5 onboard integrated Analog Inputs
  • RS485 Interface
  • Supply Voltage: 9-14 V
    • Typ: 20mA @ 12V
    • max: 30mA @ 12V

Input Specifications:

  • Voltage : 0 – [(V+) + 0.6V]

Additional Specifications :

  • CPU: STM32F100 Arm Cortex-M3 core
  • 2 orange LEDs (Power, Comm.)
  • 3 green LEDs (Diagnostics AI.1 – AI.3)
  • 1 green LED (Diagnostics AI.4 – AI.5)

Housing :

  • Dimensions (WxHxD): 36 x 90 x 58 mm
  • Material: Plastic
  • Mounting: on standard mounting DIN rail EN 60715 TH35
  • Protection Class: <IP40
  • Connection : removable spring terminals
  • Mounting position : Optional

Description :

AIN5A is a 5 Inputs module, designed to support the majority of the commonly used sensors of the market. Either for active or passive sensors, it can measure resistance up to 800 kΩ, offering solutions for high demanding installations. The connection of each sensor to the modules input is taken place per pair, also the (-) and the (+), where the (-) is common to the GND. All sensors independent of the type, must be connected in pair, in order to have a common GND.

Currently sensors  supported :

Active : 0-5V, 0-10V, 2-10V, 1.5-5.5V

Passive : PT100, PT500, PT1000, Ni100, Ni1000, NTC1.8k, NTC10k, NTC20k, KTY81-210, PTC10k, LM2352

For more information, please contact us: info@hydronic.gr
