Περιγραφή
Relay Contact Output module, auto addressed with 5 onboard integrated Relay Contact Outputs.
Technical Details
- 5 onboard integrated Relay Contact Outputs
- RS485 Interface
- Supply Voltage: 9-14 V
- Typ: 20mA @ 12V
- max: 70mA @ 12V
Output Specifications:
- NO contact Type
- Supported Contact Types:
- AC1: 5A @ 250 VAC
- DC12: 5A @ 24 VDC
- AC15: 2A @ 250 VAC
- DC13: 2A @ 24 VDC
Additional Specifications :
- CPU: STM32F100 Arm Cortex-M3 core
- 2 orange LEDs (Power, Comm.)
- 3 green LEDs (Diagnostics NO.1 – NO.3)
- 1 green LED )Diagnostics NO.4 – NO.5)
Housing :
- Dimensions (WxHxD): 36 x 90 x 58 mm
- Material: Plastic
- Mounting: on standard mounting DIN rail EN 60715 TH35
- Protection Class: <IP40
- Connection : removable spring terminals
- Mounting position : Optional
Description :

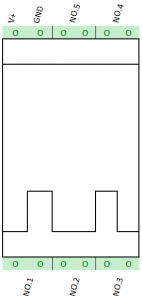

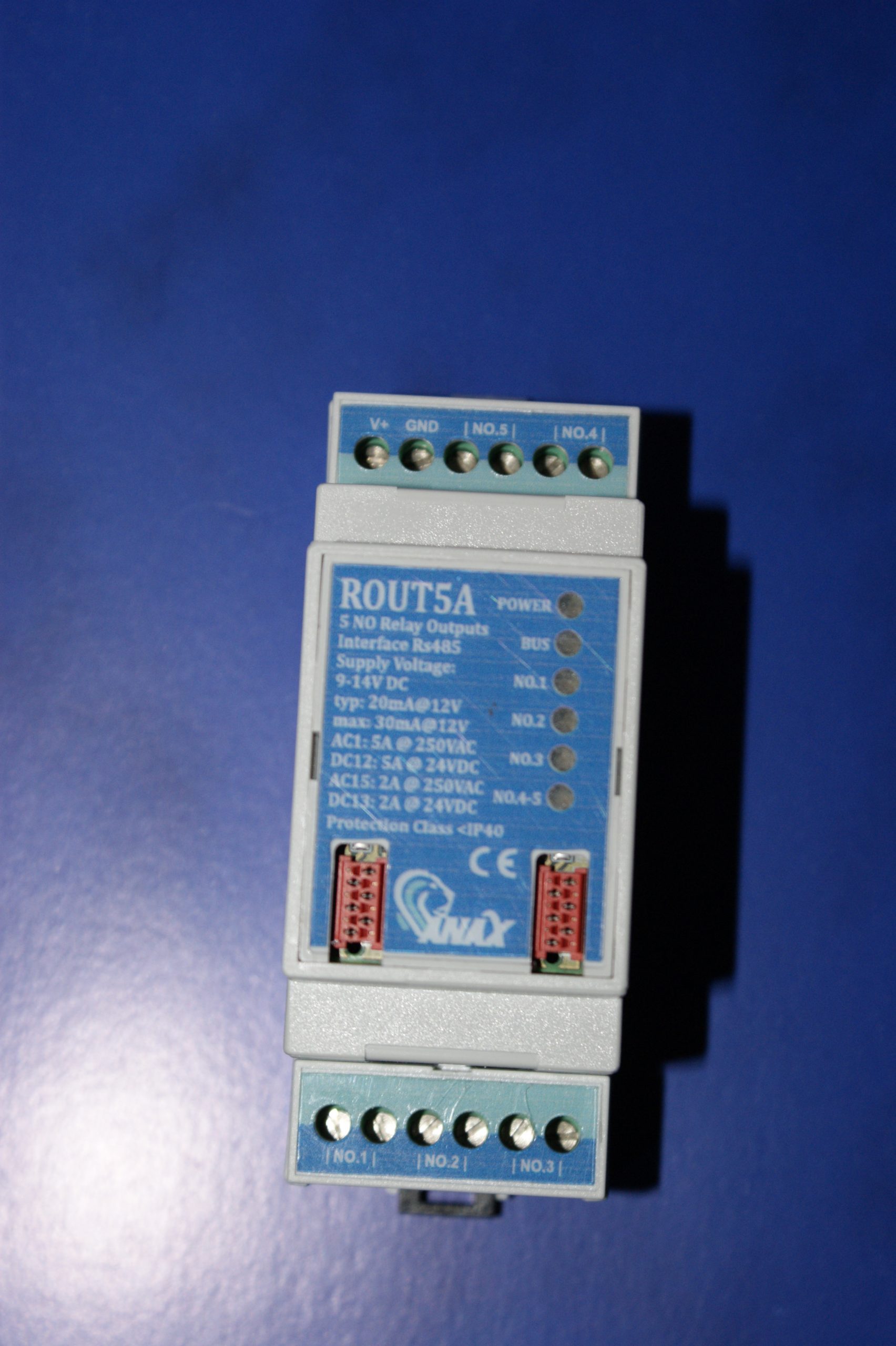

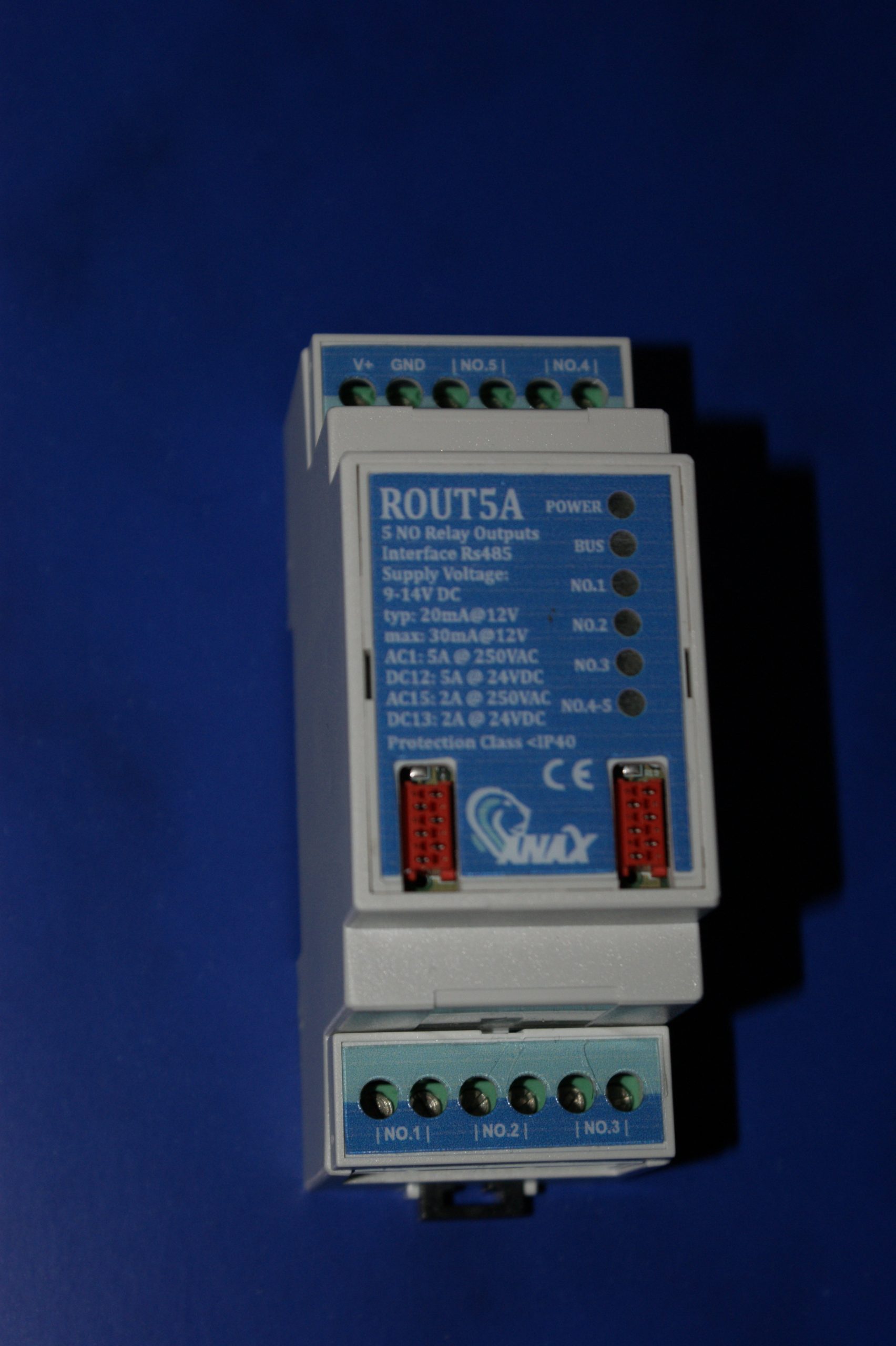

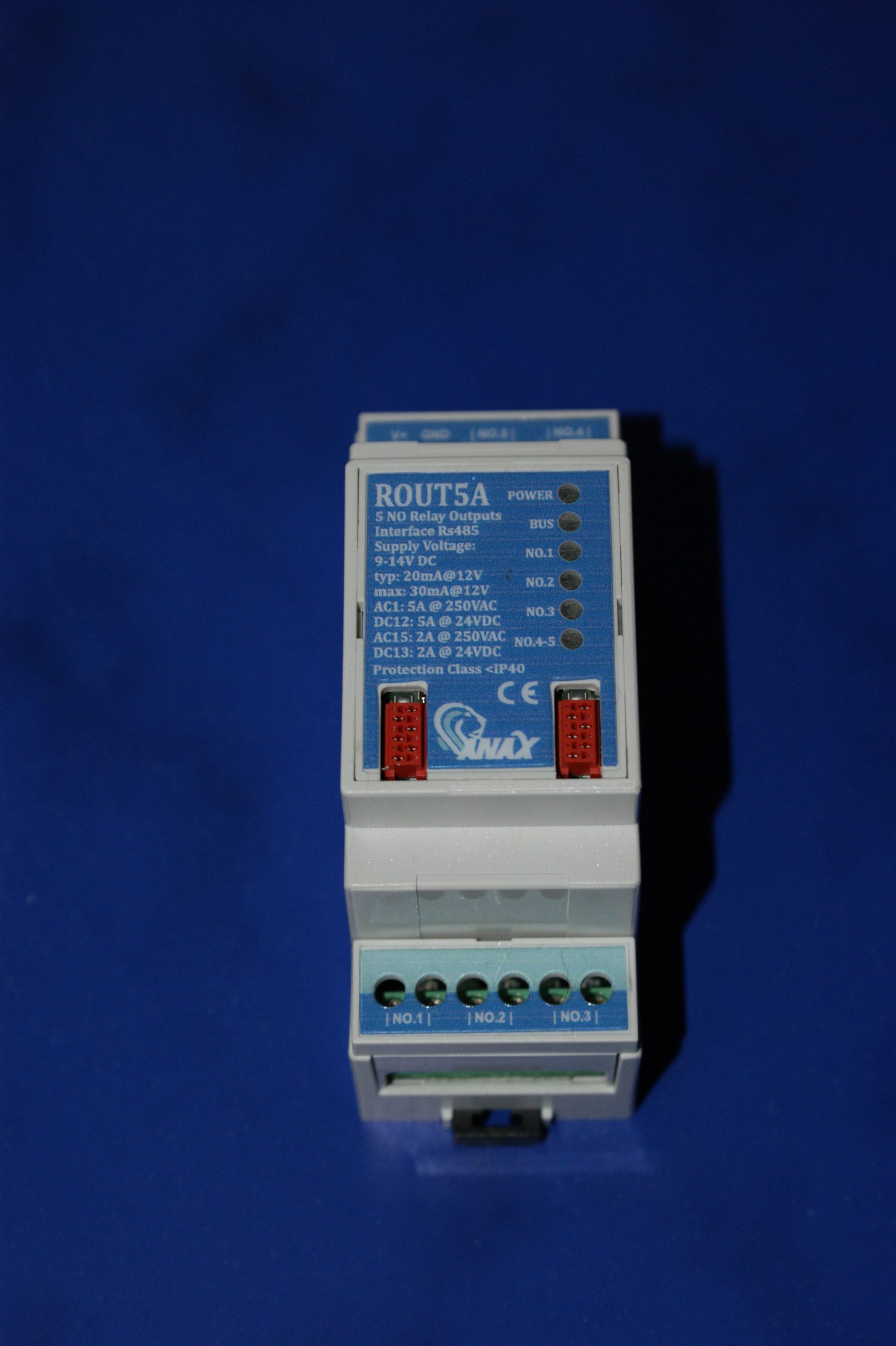

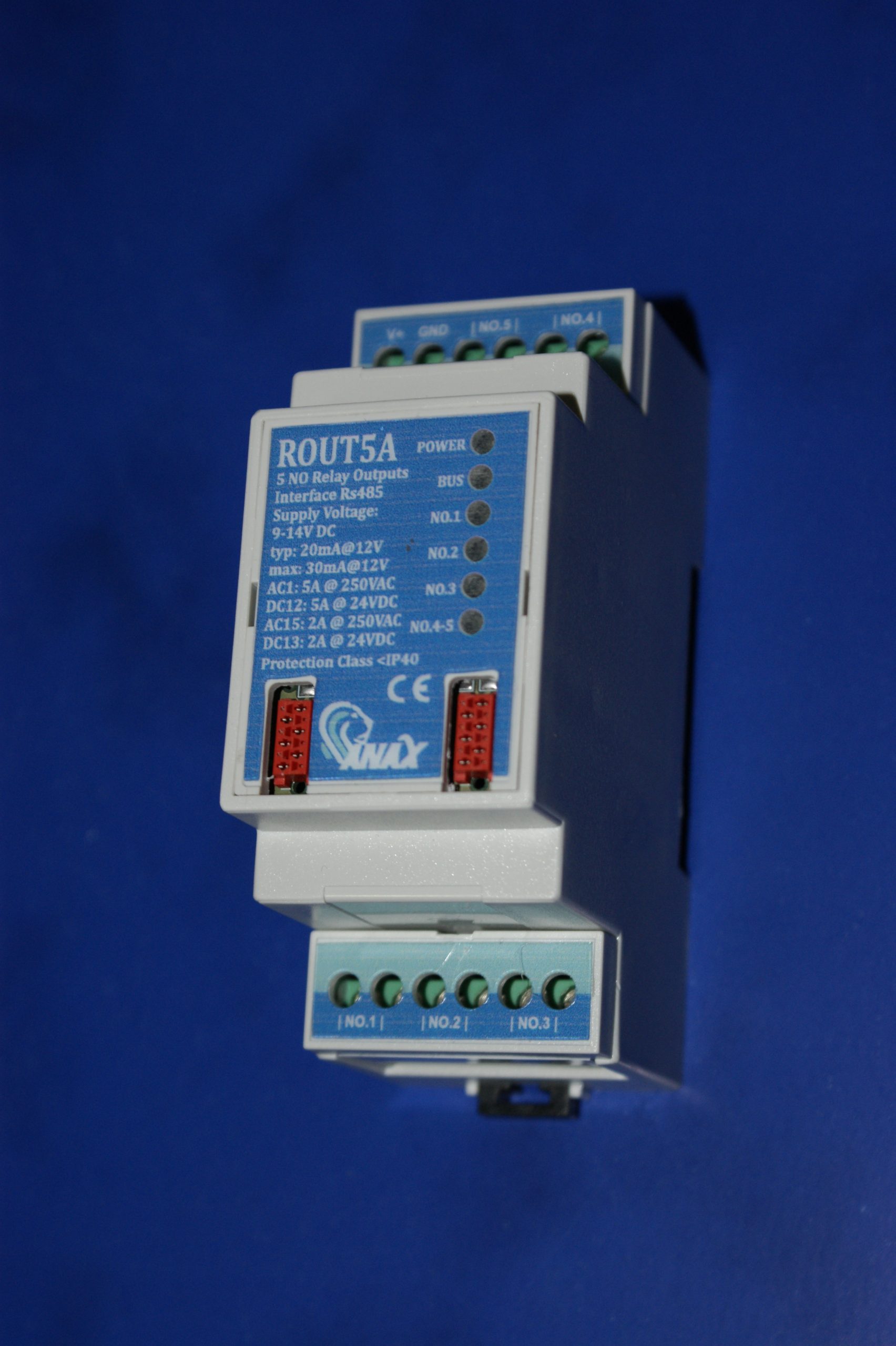

ROUT5A is a relay output module offering 5 integrated normal open contact outputs. The type of electrical load of the relays supported is :
AC1: These type of contactors are used for non-inductive or slightly inductive loads, such for heaters which are resistive loads
DC12: Control of resistive loads and solid state loads with opto-coupler isolation
AC15: Control of AC electromagnetic loads – power factor=0.5 (inductive)
Dc13: Control of DC electromagnetics – power factor=0.5 (inductive)
For more information on the electric loads please refer to https://en.wikipedia.org/wiki/Utilization_categories
When a contact is used mainly for DC Output the ON – OFF switch number is limited to around 10000 due to arching effects.
